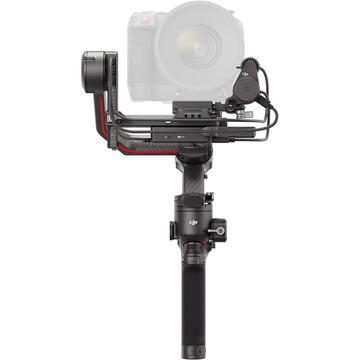

Kit stabilizator DJI Ronin S3 Pro Combo

Peripheral

• Accessory Port

• RSA/NATO Ports
  1/4"-20 Mounting Hole
  Cold Shoe
  Video Transmission/LiDAR Range Finder Port (USB-C)
  RSS Camera Control Port (USB-C)
  Focus Motor Port (USB-C)

• Battery

• Model: BG30-1950 mAh-15.4V
  Type: LiPo 4S
  Capacity: 1950 mAh
  Energy: 30 Wh
  Max. Runtime: 12 hours ^[1]
  Charging Time: Approx. 1.5 hours (using 24W charger; it is recommended to use QC 2.0 or PD protocol chargers)
  Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

• Connections

• Bluetooth 5.0
  Charging Port (USB-C)

• Ronin App Requirements

• iOS 11.0 or above
  Android 7.0 or above

• Languages Supported by the Touchscreen

• English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

• Tested Payload

• 4.5 kg (10 lbs)

• Maximum Controlled Rotation Speed

• Pan: 360°/s
  Tilt: 360°/s
  Roll: 360°/s

• Mechanical Range

• Pan axis: 360° continuous rotation
  Roll axis: -95° to +240°
  Tilt axis: -112° to +214°

Mechanical & Electrical Characteristics

• Operating Frequency

• 2.400-2.484 GHz

• Bluetooth Transmitter Power

• <8 dBm

• Operating Temperature

• -20° to 45° C (-4° to 113° F)

• Weight

• Gimbal: Approx. 1,143 g (2.51 lbs)
  Grip: Approx. 265 g (0.58 lbs)
  Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
  Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)

• Gimbal Dimensions

• Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
  Unfolded: 415×218×195 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)

DJI Ronin Image Transmitter

• Connections

• Power/Communication Port (USB-C)
  HDMI Port (Mini HDMI)
  RSS Camera Control Port (USB-C)

• Expansion Port

• Cold Shoe

• Operating Frequency

• 2.400-2.484 GHz
  5.725-5.850 GHz

• Weight

• 126 g (0.27 lbs)

• Dimensions

• Length: 82×63×24 mm (L×W×H)

• Transmitter Power (EIRP)

• 2.400-2.484 GHz:
  <25 dBm (FCC)
  <20 dBm (CE/SRRC/MIC)

  5.725-5.850 GHz:
  <25 dBm (FCC/SRRC)
  <14 dBm (CE)

• Battery

• Capacity: 2970 mAh
  Compatible Charger: 5 V/2 A
  Charging Time: Approx. 2.5 hours
  Operating Time: Approx. 3.5 hours

• Transmission Range

• 200 m (SRRC/FCC) ^[2]
  100 m (CE) ^[2]

• Latency

• 60 ms

• Operating Current/Voltage

• 900 mA/3.7 V

• Operating Temperature

• 0° to 45° C (32° to 113° F)

DJI LiDAR Range Finder (RS)

• Accessory Port

• Cold Shoe
  1/4"-20 Mounting Hole
  USB-C Port
  USB-C Power/CVBS/CAN Data Port

• Image Sensor

• Resolution: 448×298 on the RS touchscreen
  FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
  Frame Rate: 30fps
  Focal Length: 30mm Equivalent

• ToF Sensor

• Resolution: 240×180
  Sensing Range: 0.5 to 14 m ^[3]
  FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
  Frequency: 25 Hz
  Focal Length: 30mm equivalent
  Distance Error: 1%

• Machine Learning

• Frequency: 30 Hz
  Tracking Subjects: Can recognize up to five subjects at the same time, and choose one to follow
  Smart Object Identification: Human face, head, and body

• Electrical Properties

• Power Consumption: 6.8 W
  Input: 7 to 16 V

• Operating Temperature

• -20° to 45° C (-4° to 113° F)

• Mechanical Properties

• Dimensions: 66×57×24 mm (L×W×H)
  Weight: Approx. 130 g (0.28 lbs)
  Mounting Plate Height: 30 mm

• Lenses that Do Not Need Calibration

• DZOFILM Vespid Cyber 35 mm
  DZOFILM Vespid Cyber 50 mm
  DZOFILM Vespid Cyber 75 mm
