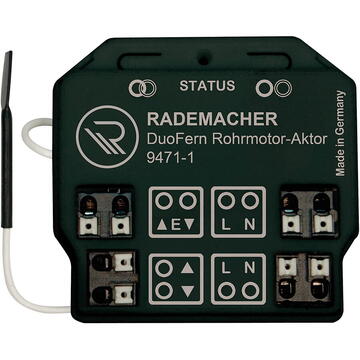

Rademacher DuoFern tubular motor actuator 9471-1

Tubular motor actuator 9471-1
With the radio-capable flush-mounted tubular motor actuator 9471-1 for roller shutter motors, roller shutters can be easily controlled by radio. With the actuator, existing roller shutter motors can be expanded and made wireless. It can be installed quickly and easily in a commercially available flush-mounted or electronics box. The flush-mounted radio actuator has the option of connecting roller shutter switches or buttons for manual operation, but can also be integrated into the DuoFern SmartHome. If the Smart Home actuator is integrated, practical automatic functions are available.
Type: actuator
EAN code: 4031909020598
Smart home: DuoFern
Note: maximum switching capacity: 550 W, maximum connection cross-section: 1.5mm2
Device Properties: Device Type | home automation
Device Properties: Device Type | expansion module
Device Properties: Assembly | flush-mounted box
Device Properties: Power Supply | 230V / 50Hz
Range: Max. receive (free field) | 100 meters
Range: Max receive (buildings) | 30 m
Range: Max. transmission (free field) | 100 meters
Range: Max Send (Building) | 30 m
Electricity: Consumption | 0.5W
Temperature range: operation | -20 - 55?
Connection type: cable
Radio: Frequency | 434.5MHz
Accessories: available | operation manual
Dimensions: Width: 48mm x Height: 20mm x Depth/Length: 48mm
