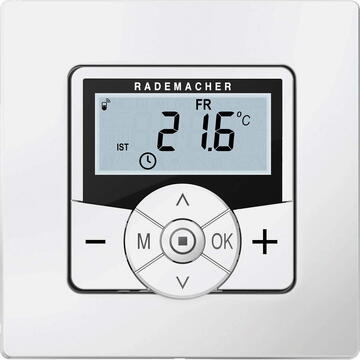

Rademacher DuoFern room thermostat 2 | 9485-1

DuoFern room thermostat 2
The DuoFern room thermostat 2 9433-1 (2nd generation) automatically measures and controls the room temperature in individual rooms. The DuoFern room thermostat can be used and configured in three different types of heating: room temperature controller, room temperature controller with limiter function, cooling function. The temperature is measured via the built-in sensor. The room thermostat has a potential-free relay output. Thanks to the integrated DuoFern radio interface, the underfloor heating can be integrated into the HomePilot Smart Home with the radio room temperature controller. A self-sufficient system is possible in combination with the DuoFern radiator actuator 2. The temperature measured by the room thermostat can optionally be used to control the radiator actuator (2nd generation). In addition, the DuoFern room thermostat (2nd generation) can be combined with the DuoFern radiator actuator (2nd generation) to control it. The DuoFern room thermostat can be connected directly to a DuoFern actuator via radio. Connected to one or more valves, this combination also enables individual room control if peripherals are not available. Up to six heating or cooling phases (incl. four target temperatures) can be set for each day. The DuoFern room thermostat is designed as a flush-mounted device for indoor use. The electrical connection is made using connection terminals on the back of the installation housing.
Type: thermostat
EAN code: 4031909024060
Manufacturer No.: 32501872
Smart home: DuoFern
Device Properties: Device Type | home automation
Device Properties: Device Type | thermostat
Device Properties: Assembly | flush mounting
Device Properties: Power Supply | 230V / 50Hz
Area of application: indoors
Range: Max receive (buildings) | 30 m
Range: Max Send (Building) | 30 m
Degree of protection: IP30
Electricity: Consumption | 0.4W
Temperature range: operation | 0 - 40 °C
Connection type: radio
Radio: Frequency | 434.5MHz
Note: The following loads, for example, can be connected to the potential-free relay output: Control valves (including low-voltage valves), heaters (including electric heaters up to max. 2300 W), air conditioning systems.
Additional information: Connection terminals: Screw terminals for a maximum cable cross-section of 1.5 mm2
Dimensions: Width: 50mm x Height: 12mm x Depth/Length: 50mm
