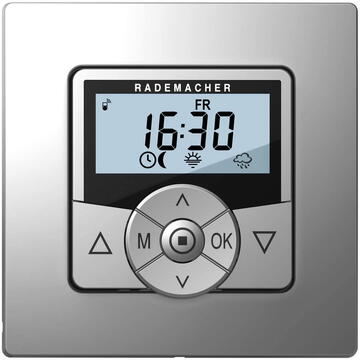

Rademacher Troll Comfort DuoFern 5665-AL

Troll Comfort DuoFern 5665-AL, time switch
The Rademacher Troll Comfort DuoFern 5665-AL is a radio-capable timer for controlling roller shutters. Connected to an electric roller shutter drive, the Troll Comfort DuoFern is used to control and automate your roller shutters. Thanks to the integrated radio interface, connected roller shutters can be operated remotely at the same time. In addition to extensive automatic functions, such as a daily/weekly/astro or random program, the Troll Comfort DuoFern also offers a simple installation wizard. This guides you through the basic settings during initial commissioning and enables switching times to be set up quickly. The changeover of the roller shutter time switch to summer and winter time is fully automatic. In addition, the wireless timer has an integrated blockage detection for mechanical tubular motors.
Type: Timer
Color white
EAN code: 4031909018939
Manufacturer part number: 36500582
Smart home: DuoFern
Device Properties: Annotation | maximum supported DuoFern devices: 20
Device Properties: Display/Display | Large illuminated display
Device Properties: Device Type | home automation
Device Properties: Device Type | control panel
Device Properties: Assembly | Flush-mounted box (32 mm installation depth)
Device Properties: Power Supply | 230V / 50Hz, 60Hz
Area of application: indoors
Range: Max receive (buildings) | 30 m
Range: Max Send (Building) | 30 m
Degree of protection: IP30
Temperature range: operation | 0 - 40 °C
Connection type: cable
Radio: Frequency | 434.5MHz
Note: Protection class: II
Feature: daily/weekly/astro program, random function
Additional information: maximum switching load: 8 A resistive load, 4 A inductive load
Accessories: available | Cover frame, installation housing, spacer, instruction manual
Dimensions: Width: 50mm x Height: 12mm x Depth/Length: 50mm
